Rubber surface coating for slip

There are various types of rubber, both natural and artificial, and they are used in a wide range of applications.
Rubber is used to fill gaps in car tires and windows, and is also used in many of our daily life, such as in the feet of home appliances.
Rubber is often used for non-slip and cushioning applications that take advantage of its surface gripping power, but a sliding surface function is required while taking advantage of rubber's cushioning properties.
In response to such requests, Vel-suede manufactures original rubber sheets with sliding treatment on the surface of rubber and provides sliding treatment for molded rubber products.

Characteristics of Rubber Sliding Treatment

Use of Vel-Suede's original special treatment agent

Double-sided tape can be applied to sliding surfaces

Prevent sticking and stickiness over time

The NS Series -
Sliding CR rubber sheet

The NS Series is Vel-Suede's original rubber sheet with a sliding treatment; a thin rubber sheet of CR rubber (chloroprene rubber) is used as the base material to achieve high sliding performance without compromising the flexibility of rubber. It is used as a sliding parts in the lens barrel and housing of digital cameras, etc., and functions as light shielding, dustproofing, and simple waterproofing. In addition, by applying sliding treatment to the rubber packing material, it prevents the material from sticking to mating objects as it ages. There are single-sided sliding sheets and double-sided sliding sheets with treatment on both sides, which can be selected according to the customer's needs.
Normally, it is difficult to attach double-sided tape to sliding treated surfaces, but Vel-Suede's NS series can attach double-sided tape to sliding treated surfaces, expanding the range of design possibilities.

NS Sheet Series
Material name	Thickness
NS-101-FS	0.12
NS-101W-FS	0.12
NS-102-FS	0.22
NS-102W-FS	0.22
NS-103-FS	0.32
NS-103W-FS	0.32

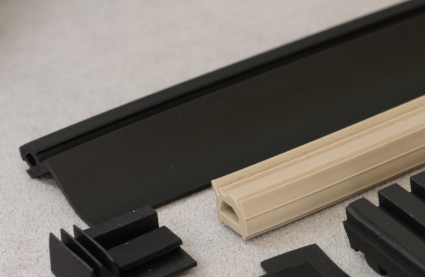

Slip treatment of rubber molded products

Sliding properties are added to molded rubber products for building materials by applying a sliding treatment. When window frame parts are treated, it slide smoothly , and at the same time, durability is increased by protecting the rubber firmly even under severe conditions of high temperature and high humidity.
